Generator Battery Charger

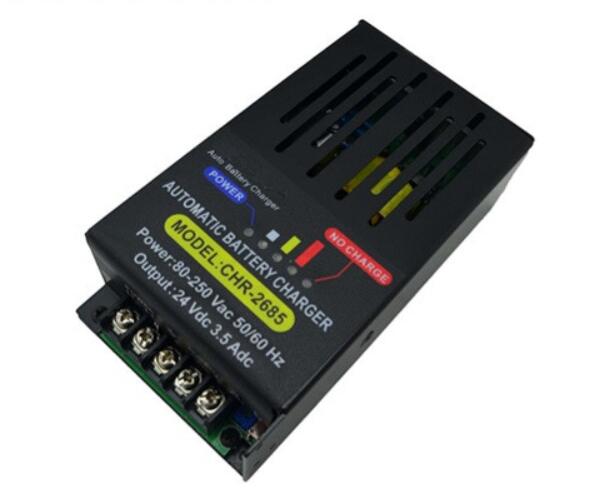

24V 3.5A Automatic Battery Charger for Diesel Generator CHR-2685

Model Number: 24V 3.5A
Brand Name: Monican
Warranty: 1 year
In stock: yes
Product description: Diesel Generator Automatic Battery charger 24V 3.5A is specially designed for starting or working of storage battery in diesel engine. It is a intelligent model of switch structure. It is only one cha
INQUIRY

This charger is designed for24V lead-acid storage cell.

It is a high effeciency module which used the AC/DC switch conversion.

It is the charger electricizing with float form, has over current protection,

short circuit protection, fail to charge up and tiny electricizing functions.

It has the feature as electricizing quickly and safe.also can adjust current

automatically depend on the different speed rate of rising voltage

from different battery while working.It represents the newest charging technology.

Current: 3.5-5A

voltage: 24V

Net weight: 485g

Model	Generator Automatic Battery Charger CHR-2685 24V 3.5A
AC Input Voltage	80~250VAC (110/220VAC)
Frequency	50/60HZ
Output Voltage	25-27VDC
Changing Algorithm	Constant voltage then constant current
Protection	Over voltage, Over current, Short circuit
Efficiency	At Full Loaded >85%
Working Temperature	-40~70℃
Storage Temperature	-40~85℃
Relative humidity	Max. 90 %
Dimension	147mmL82mmW43mmmH
Net weight	0.5KG
