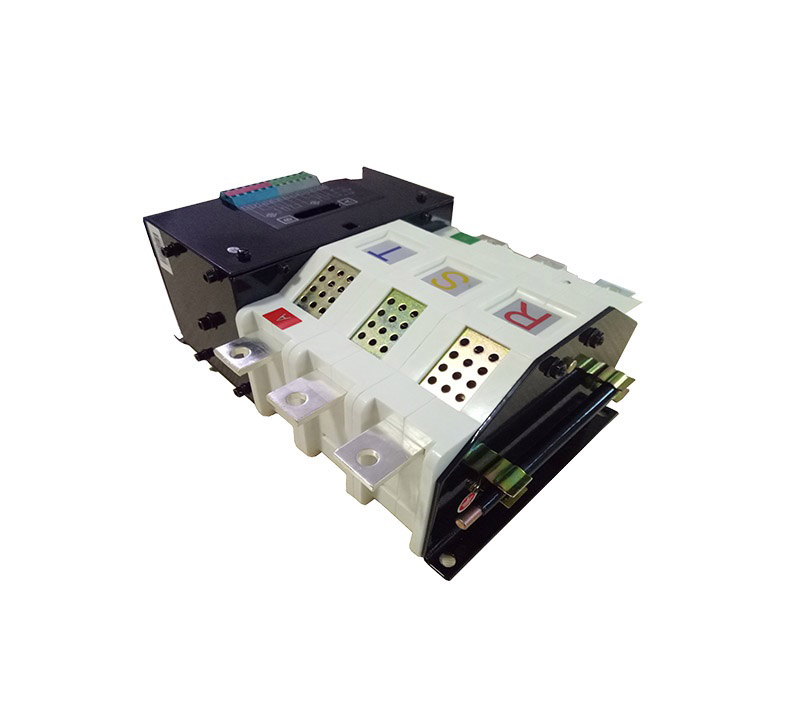

Generator ATS Controller 125A 3P

Model: ATS125A-3P
Max Current: 125A
Max Voltage: AC 440A
Warranty: 1 year
Product description: Automatic Transfer Switch (ATS) is used which operation voltage is no more than 660VAC, and may transfer with load. The ATS rated current series is 40A, 63A, 80A,125A, 160A, 250A, 400A, 630A, 800A,100
INQUIRY

Automatic Transfer Switch (ATS) is used which operation voltage is no more than 660VAC, and may transfer with load. The ATS rated current series is 40A, 63A, 80A,125A, 160A, 250A, 400A, 630A, 800A,1000A,1250A,1600A,2000A,be divided up two types with 3 poles and 4 poles. The ATS of 40~125A is defined with 'N'; 160~400 is defined with 'T' ;630A~2000A is defined with "M".

Main Technology Parameters

Rated current (Ith)		20 A	40 A	60 A	80 A	100 A	125 A	160 A	250 A	400 A	630 A	800 A	1000 A	1250 A	1600 A
Rated insulation voltage (Ui)		750V								1000V
Rated concussion withstand voltage (Uimp)		8KV								12KV
Rated working voltage (Ue)		AC440V
Rated working current (Ie)	AC-31A	20	40	63	80	100	125	160	250	400	630	800	1000	1250	1600
	AC-35A	20	40	63	80	100	125	160	250	400	630	800	1000	1000	1600
	AC-33A	20	40	63	80	100	125	160	250	400	400	630	800	800	1000
Rated connection capacity		10 le
Rated breaking capacity		8 le
Rated limited short- Circuit current (Is)		50kA								70kA				100kA	120kA
Rated short-time Withstand current (Is)		7kA						9kA		13kA		26kA		50Ka
TransferⅠ-ⅡorⅡ-Ⅰ		0.45s								0.6s		1.2s
Control power voltage		DC24V ,48V, 110V AC220V
Electrical consumption
Rated frequency	Start	300W						325W		355W		400W	440W
	Normal	55W						62W		74W		90W	98W
Weight(kg) 4 pole		7.0	7.2	7.2	7.2	7.5	7.5	8.8	9.0	16.5	17	32	36	40	43
