Speed Governor

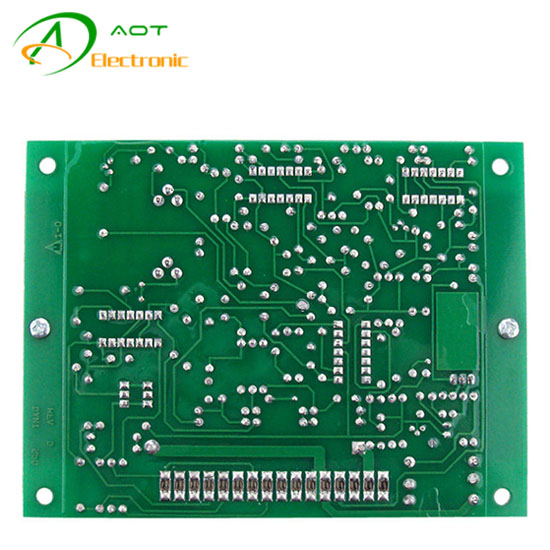

24V DC Generator Electronic Speed Governor Control Unit EFC 3044195

Model: 3044195
Origin: China
Warranty: 1 Year
In stock: Yes
Product description: 24V DC Generator Electronic Speed Governor Control Unit EFC 3044195
INQUIRY

1) Spec

Rpm stability: <±0.25%

Speed range: 1KHz ~ 6.5KHz

Thermal stability: Max±0.7%

Idle regulation: 260±20Hz

Droop regulation: Minimum 15Hz±6Hz/ 1 amp

Maximum: 400Hz±75Hz/ 1 amp

External speed regulation:±200Hz (with 1 kωConnected)

Aux input sensitivity: 148Hz / 1v.,±10Hz

Impedance: 1mω

Working temp range: -40 ~ 85

2) Environment:

Working humidity range: Maximum 95%

Stocking temp: -55 ~ 92

Shocking: 20-100Hz 500mm/sec.

Input power supply

Voltage: 24v

Grounding pole: Negative pole

Power supply: 40ma

Actuator continuous current: Minimum 1a, maximum 4.5a

3) MPU

Signal: 2 ~ 120v RMS

Note: Above-mentioned parameters are tested with a 3800Hz working frequency.

3044195
Input	Supply	24 VDC ±20%
	Polarity	Negative Ground (Case Isolated)
	Power Consumption	40 MA
	Maximum Actuator Current	4.5 A continuous
	Speed Sensor Signal	2-120 Volts RMS
Performance	Isochronous Operation/Steady State Stability	±0.25% or better
	Speed Range/Governor	1K to 6.5K Hz continuous
	Speed Drift with Temperature	±1 Max
	Idle Regulation	260±20 Hz
	Droop Adj. Max.	400 Hz., ±75Hz. Per 1.0A change
	Speed Trim Range	±200 Hz with 1 ohm connected
	Remote Variable Speed Range	25 to 100% of rated speed
	Impedance	1m ohms
Environmental	Ambient Operating Temperature Range	-40 to +85 Deg. C
	Relative Humidity	Up to 95%
	All Surface Finishes	Fungus Proof and Corrosion Resitant
Reliability	Vibration	20 to 100 Hz. 500mm/sec
