Diesel Generator Speed Governor Speed Control Unit ESD5522E

Model: ESD5522E
Origin: China
Warranty: 1 Year
In stock: Yes
Product description: Generator Frequency Control Electronic Speed Controller ESD5522E is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist o
INQUIRY

Diesel Generator Speed governor Speed Control Unit ESD5522E

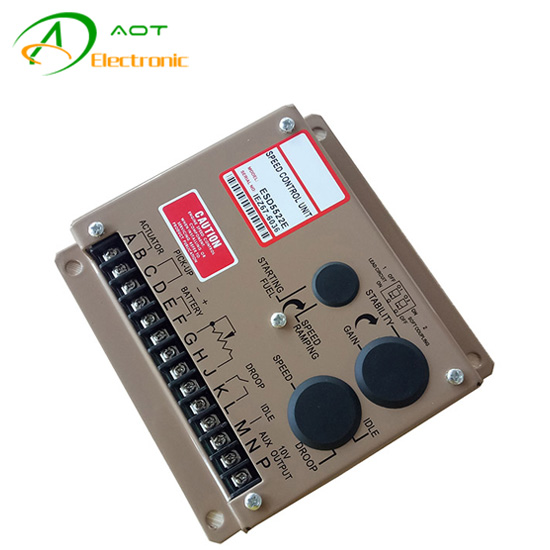

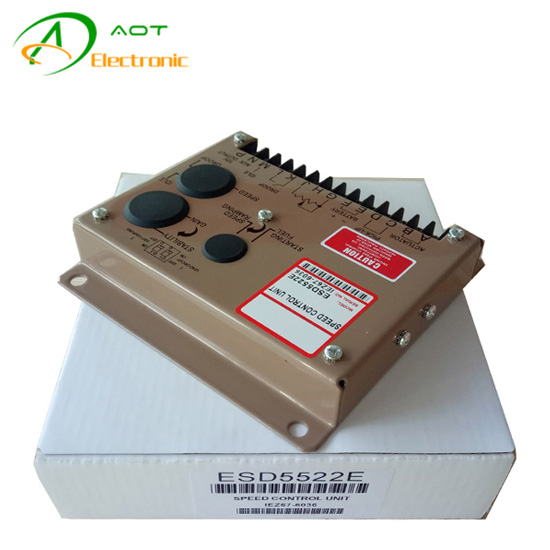

Generator Frequency Control Electronic Speed Controller ESD5522E is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.

The ESD speed control is compatible with proportional Actuators except the ACB2001 electric actuator since this high torque actuator also requires current limiting. Ruggedly built to withstand all engine environments, the ESD’s STARTING FUEL and SPEED RAMP features will minimize engine exhaust smoke experienced prior to attaining engine operating speed and smooth out response.

Generator Frequency Control Electronic Speed Controller ESD5522E
Isochronous Operation/Steady State Stability	± 0.25% or better
Speed Range/Governor	1K-7.5K Hz continuous
Speed Drift with Temperature	± 1% Maximun
Idle Adjust CW	60% of set speed
Idle Adjust CCW	Less than 1200 Hz
Droop Range	1-5% regulation
Droop Adj. Max. (K-L Jumpered)	400Hz., ± 75Hz. per 1.0 A change
Droop Adj. Min. (K-L Jumpered)	15Hz., ±75Hz. per 1.0 A change
Speed Trim Range	± 200Hz
Remote Variable Speed Range	500 -7.5Hz. or any part thereof
Terminal Sensitivity	J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance
	L: 735Hz., ± 60Hz/Volt @ 65 K Impedance
	N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance
	P: 10V DC Supply @ 20ma Max
Speed Switch Adjustment Range	1000-10000Hz.
ENVIRONMENTAL
Ambient Operating Temperature Range	-40°c to +80°c
Relative Humidity	up to 95%
INPUT POWER
Supply	12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
Polarity	Negative Ground(Case Isolated)
Power Consumption	50mA continuous plus actuator current
Maximum Actuator Current at 25	10Amps continuous
Speed Sensor Signal	0.5-120 Volts RMS
