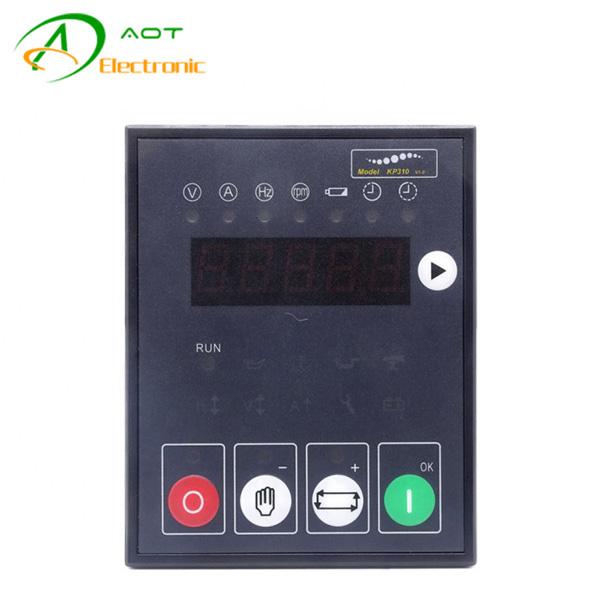

Kp310 v1.0 intelligent controller is used to control the start and stop of a single generator set and monitor the operation status of the unit. It can realize the manual start-up and shutdown of the unit, remote operation of the unit, measurement of the unit operation data, alarm protection and other functions. The controller adopts 5-digit and 8-segment digital tube to display the working status information and alarm information of the unit in detail. The controller can communicate with the host computer through RS232 serial port to realize the start / stop of the generator set by the upper computer, and monitor the operation data of the unit in real time. The upper computer software can switch between Chinese and English, which is simple and reliable. It can also be connected with RS485 communication adapter and can communicate with remote terminal control and display module to realize remote monitoring.
|
Working Voltage |
12V (8-16V) |
|
Voltage Measurement |
AC input voltage: Phase voltage 10 ~ 290vac RMS |
|
Accuracy class: 2.0 |
|
|
AC line system: three phase four wire system three phase three wire system single phase two wire system dual voltage simultaneous output double voltage selective output |
|
|
Current Measurement |
Primary side: 1A - 900A (user settings) |
|
Secondary side: 5mA |
|
|
Accuracy class: 2.0 |
|
|
Frequency measurement |
Frequency range: 20 ~ 70Hz (voltage > 15V) |
|
Accuracy class:0.5 |
|
|
Speed measurement |
Voltage range: 5-50v |
|
Maximum frequency: 10000hz |
|
|
Number of flywheel teeth: 1-500 |
|
|
Operating ambient temperature |
-20C to 70C |
