Electric Relay

AC/DC supply voltage single phase 10A monitoring voltage relay

Model: AOT-V8-02
Original: China
In Stock: Yes
Warranty: one year
Product description: Monitoring Voltage Relay, protect electrical equipment and motors from over-voltage and under-voltage. Normal/emergency power supply switching
INQUIRY

Applications

-Protect electrical equipment and motors from over-voltage and under-voltage.

-Normal/emergency power supply switching.

Function Features

-Controls its own supply voltage(True RMS measurement)

-.User may select operation mode through knob.

-Voltage measurement accuracy<1%.

-Relay status is indicated by LED.

-1-MODULE,DIN rail mounting.

AOT-T8

Rated control supply voltage:

Rated supply voltage code:D12 AD48 AD240 A220

Rated supply voltage:DC 12V AC/DC24…48V AC/DC110…240V AC220V

supply voltage LIMITS:DC7…20V AC/DC15…100V AC/DC50…270V AC160…270V

Range of adiustment:DC9…15V AC/DC20…80V AC/DC65…260V AC180…260V

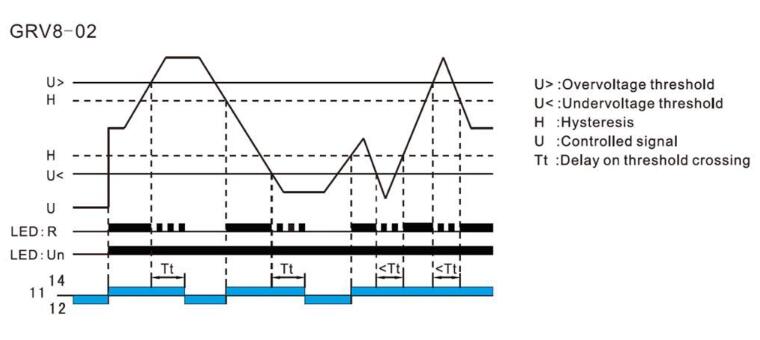

Function Of Mode

02-Overvoltage Undervoltage

Product Name	Single Phase Monitoring Voltage Relay
GRV8-01	Function: Overvoltage or Undervoltage
GRV8-02	Function: Overvoltage & Undervoltage
Voltage Range	AC/DC12-240V DC12V AC/DC24-48V AC220V
Supply Terminals	A1-A2
Output	1SPDT
Current Rating	10A/AC1
Voltage Range	50/60HZ
Time Delay	Adjustable 0.1s-10s (10%)
Reset Time	1000ms
Standard	EN 60255-1,IEC60947-5-1
Protection Degree	IP40 for Front Panel, IP20 for Terminals
Weight/pcs	0.1KG/PCS
Certifications	CE CB
Warranty/guarantee	18months
MOQ	1PCS
