Automatic Voltage Regulator (AVR)

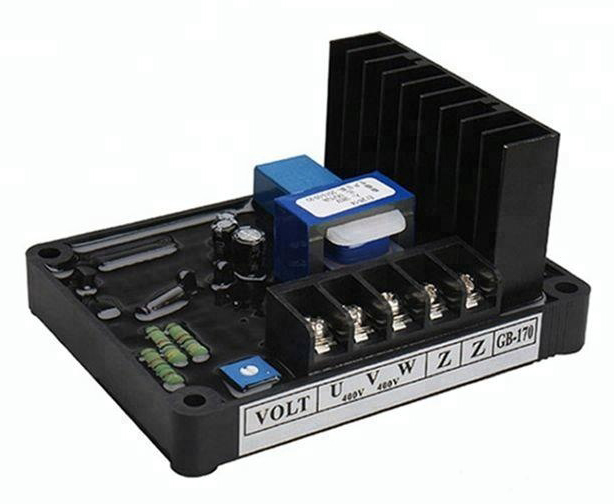

Generator Brush AVR Automatic Voltage Regulator AVR GB-170

Model: AVR GB-170
Origin: China
In stock: yes
warranty: 1 year
Product description: Automatic Voltage Regulator Brush AVR GB-170. AC Brush Generator AVR Circuit Diagram 3 Phase AVR GB-170 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of th
INQUIRY

Generator Brush AVR Automatic Voltage Regulator AVR GB-170

AC Brush Generator AVR Circuit Diagram 3 Phase GB-170 is a half-wave phase controlled Thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%

Product Name	Brush Generator AVR GB-170
SENSING/POWER INPUT
Voltage	110/220Vac,3 phase ,3 wire
MAGNETIC FIELD OUTPUT
Voltage	50/60 Hz jumper selectable
Current	continuous 10A
PRESSURE REGULATING ACCURACY	<+/-1%RMS with 4% engine governing
