Automatic Voltage Regulator (AVR)

New Electrical Circuit Diagram Generator AVR MX450 with High Quality

New Electrical Circuit Diagram Generator AVR MX450 with High Quality

Model: AVR MX450
Origin: China
In stock: yes
warranty: 1 year
Product description: Electrical Circuit Diagram Generator AVR MX450 MX450 is a half-wave phase-controlled thyristor type Ac regulator and forms parts of the excitation system for a brush-less Electric generator.
INQUIRY

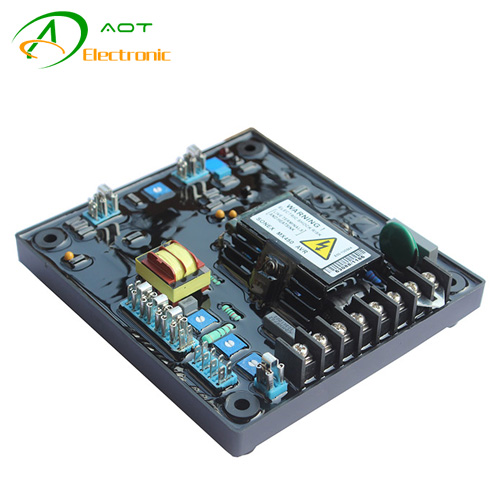

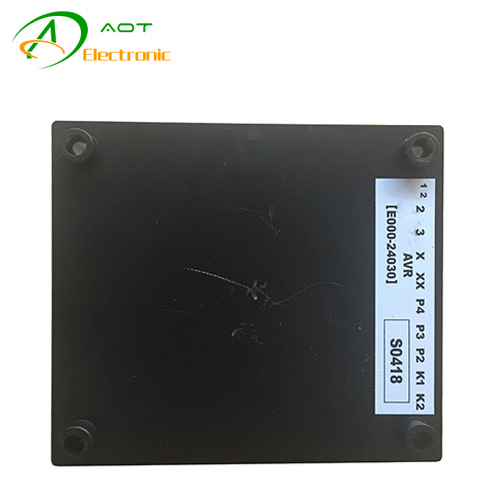

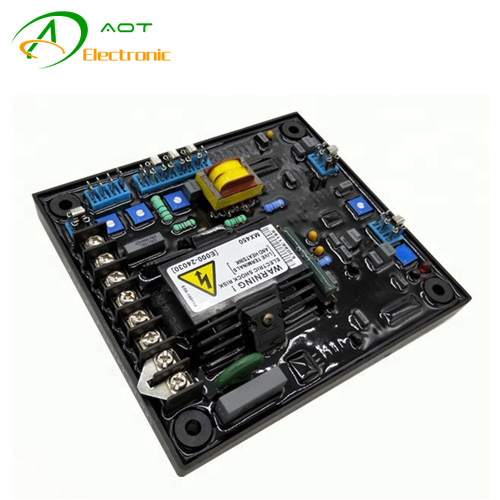

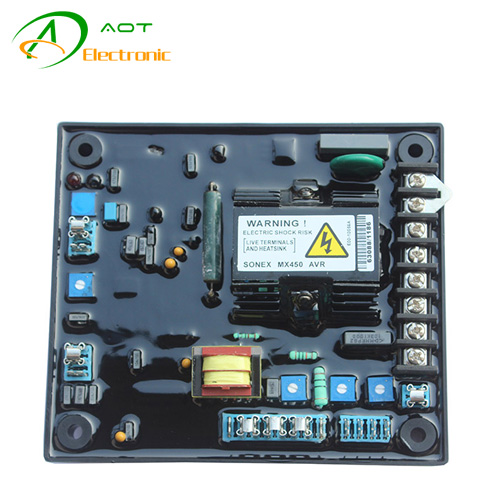

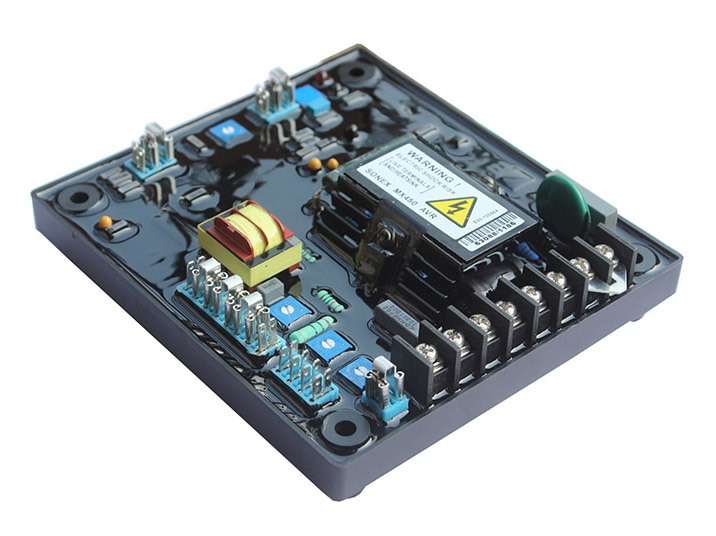

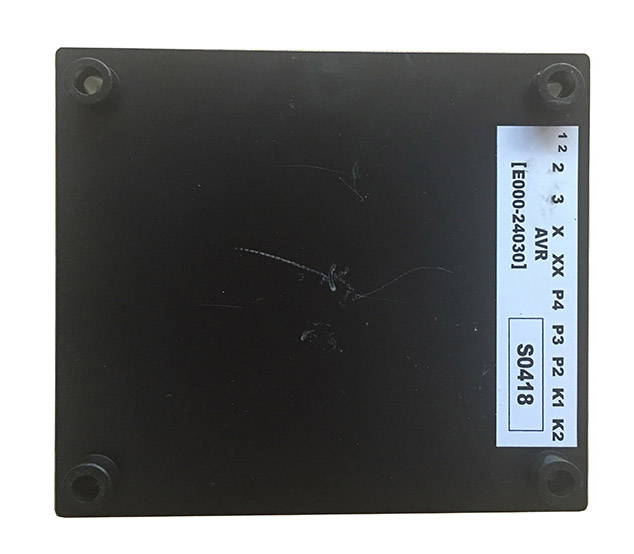

New Electrical Circuit Diagram Generator AVR MX450 with High Quality

Description

MX450 is a half-wave phase-controlled Thyristor type Ac regulator and forms parts of the excitation system for a brush-less Electric generator.

Positive voltage build up from residual level is ensured by the use of efficient semiconductors in the power circuitry of the AVR

The AVR is linked with the main stator windings and the exciter field windings to provide closed loop control of the output voltage with load regulator of +/-1.0%.

Provision is made for the connection of a remote voltage trimmer,allowing the user fine control of generator's output.

SPECIFICATION (Detailed data sheet download click here)

Stamford AVR	MX450
Sensing voltage	jumper selectable120(95-132)VAC, 240(190-264)VAC, single phase 2wire
Frequency	50-60Hz nominal
Voltage Input	Max 90VDC at 207VAC input
Resistance	15 Ω minimum
Regulation	<±1% RMS with 4% engine governing
Voltage Build-up	residual voltage atAVR terminal >5vac
External Voltage Adjustment	:+/-7% with 1k ohm 1 watt trimmer
Generator Power	>150kw
