FG Wilson Generator Spare Parts PCB Circuit Board 650-045

  • Model: 650-045
  • Origin: China
  • In stock: yes
  • warranty: 1 year
  • Product description: FG Wilson Generator Spare Parts PCB Circuit Board 650-045
  • INQUIRY

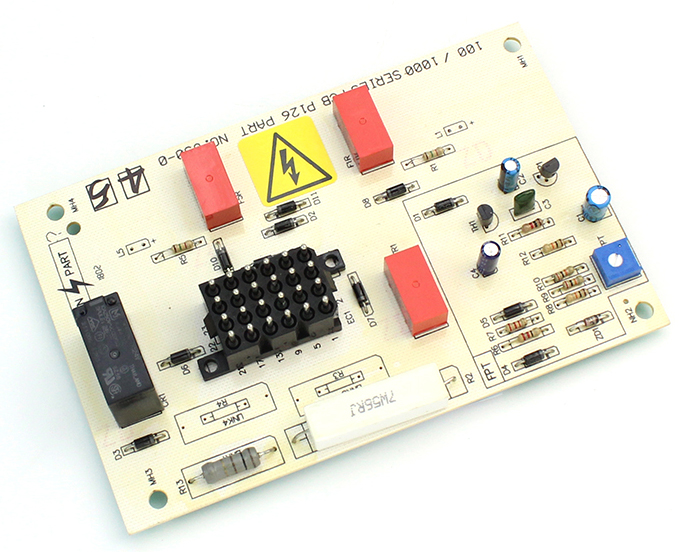

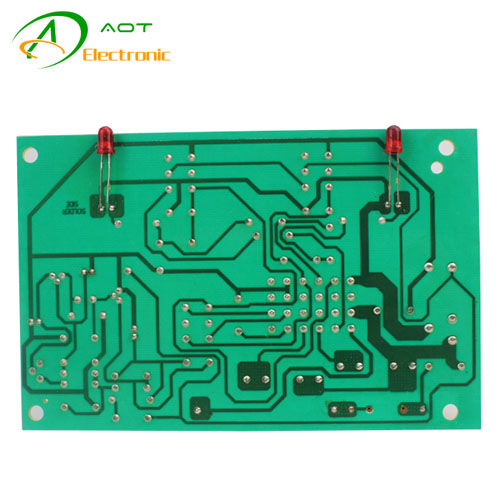

FG Wilson Generator Spare Parts PCB Circuit Board 650-045

1.Vilson parts 650-045 Printed Circuit Board

2.repair printed circuit board

3.Weight :0.5kg

4.ISO9001

5.1 years guarantee.



Vilson parts  650-045 Printed Circuit Board

for gensets OLYMPLAN-MASSEY FERGUSON 24V.

The 650-045 Printed Circuit Board for gensets OLYMPLAN-MASSEY FERGUSON 24V.



Ensure the MPU (Magnetic Pickup) is installed correctly.

1)    Unscrew and pull out the magnetic pickup that is located near the flywheel of the engine.

2)    Inspect the magnetic tip and ensure that it is clean and free of debris.

3)    Screw the MPU in until the tip makes contact with the top of the flywheel teeth.

4)    Back out the magnetic pickup½to¾of a turn.

EIM (Engine Interface Module)

1) Turn the ten-turn potentiometer between five to seven turns clockwise or just until you feel a small click - signifying the full span of the pot.

2) Start the generator set. You will notice the over speed calibration LED illuminated.

3) Slowly turn the potentiometer counter-clockwise until the LED just turns off.

5)    As soon as the LED turns off, start to slowly turn back the potentiometer clockwise just until the led starts to flicker.


We can supply the following products:

PCB 650-044,

PCB 650-045.

PCB 650-091,

PCB 650-092.

EIM 630-465,

EIM 630-466.

pcb transformers

generator accessories
