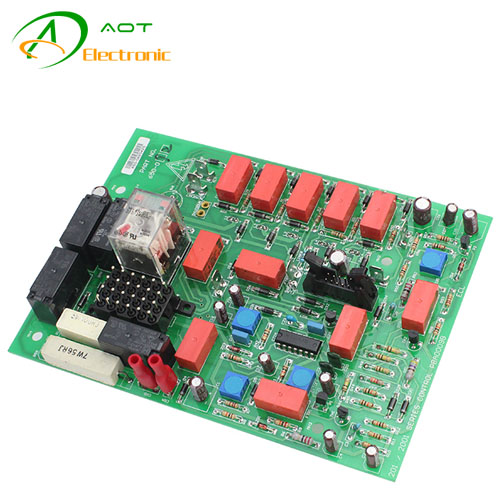

FG Wilson Engine 24V PCB 650-092 for Generator

FG Wilson Engine 24V PCB 650-092 for Generator

Model: 650-092
Voltage: 24V
Warranty: 1 Year
In stock: Yes
Product description: FG WILSON PCB 650-092, 24V The 650-092 Printed Circuit Board for gensets OLYMPIAN-MASSEY FERGUSON 24V, The 650-092 Printed Circuit Board for diesel generator
INQUIRY

FG Wilson PCB 650-092 for 24V Olympian Generator

(We have FG Wilson PCB 650-092 in our regular stock!)

The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.

12V Olympian FG Wilson Engine Interface Module :

630-088 EIM
630-465 EIM
917-423 EIM

24V Olympian FG Wilson Engine Interface Module :

630-089 EIM
630-466 EIM
917-422 EIM
917-530 EIM

12V Olympian FG Wilson PCB :
650-091 PCB Printed Circuit Board, 12V for Olympian or F.G. Wilson 12 volt engine control. Replaces PC Board 650-091.

24V Olympian FG Wilson PCB :
650-092 PCB Printed Circuit Board, 24V for Olympian or F.G. Wilson 24 volt engine control. Replaces PC Board 650-092.

Specifications of FG Wilson 650-092 PCB

The FG Wilson Engine Interface Module is a sealed engine mounted module that provides switching Relays for the starter motor Solenoid, glow plug and fuel solenoid.

Each of these circuits is protected with individual automatic fuses mounted in the module. Individual LED’s illuminate when each circuit is energized in addition these LED’s greatly aid when fault finding.

This module is mounted on the engine with anti-vibration mounts and is easily connected to the engine via loom plugs. Use of the FG WILSON EIM 630-465 means that heavy currents such as fuel solenoid power are isolated from the control panel thus enabling individual protection of each of the circuits.
