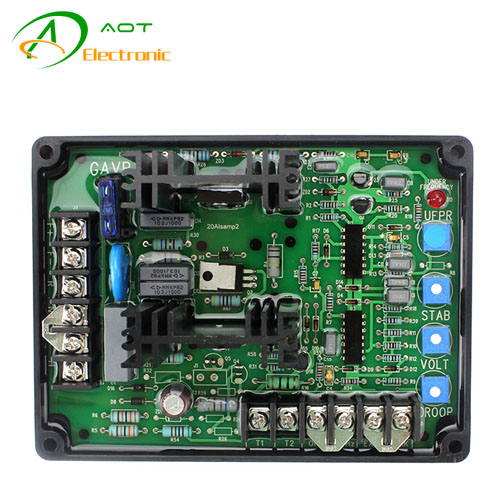

AOT Generator General Electric Voltage Regulators AVR GAVR-15B

AOT Generator General Electric Voltage Regulators AVR GAVR-15B

Model: AVR GAVR-15B
Origin: China
Warranty: 1 Year
In stock: Yes
Product description: Generator AVR GAVR-15B is Universal 15 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brush-less generator.
INQUIRY

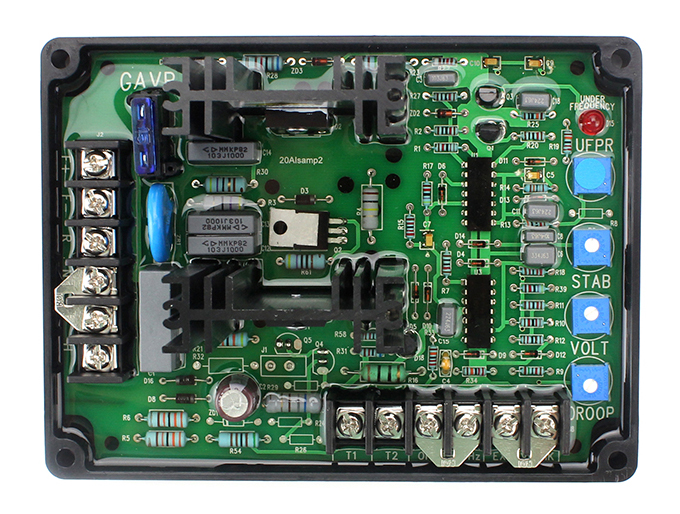

AOT Generator General Electric Voltage Regulators AVR GAVR-15B

GAVR-15B is Universal 15 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brush-less generator.

- <±O.5oA, Regulation

- 220/400 VAC Programmable Input

- Rugged Compact Design

- With Under Frequency Protection

- Soft Start Voltage Ramping

- EMF Suppression

- Built-in High Capacity 15Amp Fuse

*Sensing Input Voltage 220/400VAC,1phase 2wire

*Power Input Voltage 180~240VAC, 1phase 2wire

*Output Voltage Max.90VDC@240VAC input

Current Continuous 6A

Intermittent 12A for 10SEE

Resistance Min.10Ω Max 100Ω

*Voltage Build-up esidualvolts at AVR terminal>5VAC

*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer

*Unit Power Dissipation Max.8Watt

*Under Frequency Protection 60Hz system presets knee point at 57Hz

*(Factory Settings) 50Hz system presets knee point at 47Hz

Sensing input	Voltage	220/400VAC, 1 phase 2wire	Voltage Build-up	Residual volts at AVR terminal>5VAC
Power Input	Voltage	180-240VAC, 1 phase2wire	External Vdits Adjustment	±7%with 1k Ω1wait trimmer
Output	Voltage	Max.90VDC at240V AC input	Soft Start Ramp Time	3sec.
	Current	Continuous 6A	Unit Power Dissipation	Max.8Watt
		Intermittent 12A for 10SEE	EMI Suppression	Internal Electromagnetic Interference Filtering
	Resistance	Min.10Ω Max.100Ω	Thermal.Drift	0.05% per °C charge in AVR ambient
			Under Frequency Protection	60Hzsystem presets knee point at 57Hz
			(Factory Settings)	50Hzsystem presets knee point at 47Hz
Volts	Regulation<±0.5%(with 4% engine goveming)
