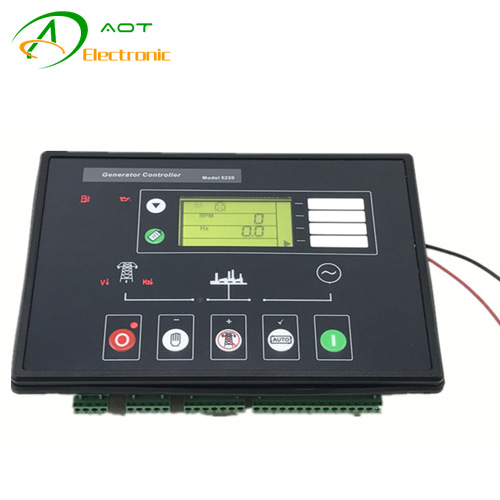

Diesel Generator Automatic Generator ATS Control Board DSE5220

Diesel Generator Automatic Generator ATS Control Board DSE5220

Model: DSE5220
Origin: China
In stock: yes
warranty: 1 year
Product description: Deep Sea Electronics Generator Controller DSE5220 has same function with the Deep sea DSE710, can completely replace with it. It has the function of auto mains (utility) failure control modules monito
INQUIRY

The DSE5220 is an Automatic Start Control Module that offers an advanced range of engine monitoring and protection features. The module has been designed to monitor generator frequency, generator volts, generator current, engine oil pressure, engine coolant temperature, engine running hours and battery volts.

FEATURE

Automatic start

Automatic mains (utility) failure detection

Automatic load transfer

Configurable inputs

Configurable outputs

Configurable alarms & timers

Digital inputs

Analogue inputs

Back-lit character LCD display

Engine protection

Front panel mounting

PC configurable

Front panel programming

Remote monitoring

RS232 or RS485 remote communications (to be specified on ordering)

Modbus RTU

Engine history event log

LED alarm indication

LCD alarm indication

SMS messaging

Hid till lit alarm icons

Engine exercise mode

Magnetic pick-up

Power Supply	8 to 35V DC Continuous
Cranking Dropouts:	Able to survive 0 V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V without the need for internal batteries.
Max Current	Operating 320mA at 12V, 215mA at 24V; Standby 175mA at 12V, 95mA at 24V
Start Relay Output:	16 Amp DC at supply voltage.
Fuel Relay Output:	16 Amp DC at supply voltage.
Auxiliary Relay Outputs:	5 Amp DC at supply voltage.
Charge Fail / Excitation Range	0 V to 35 V
Alternator Input Range:	15V(ph-N) to 300V(ph-N) 3 Phase 4wire AC (+20%)
Alternator Input Frequency:	50 - 60 Hz at rated engine speed (Minimum: 15V AC Ph-N)
Mains Supply Input Range:	15V(ph-N) to 300(ph-N) 3 Phase 4wire AC (+20%)
Mains Supply Input Frequency:	50 - 60 Hz at rated engine speed (Minimum: 15V AC Ph-N)
Magnetic Pick-up Voltage Input Range:	+/- 0.5 V to 70 V Peak
Magnetic Input Frequency:	10,000Hz (max) at rated engine speed
Operating Temperature Range:	-30 to +70°C
Panel Cutout:	220mm x 160mm ( 8.7” x 6.3”)
