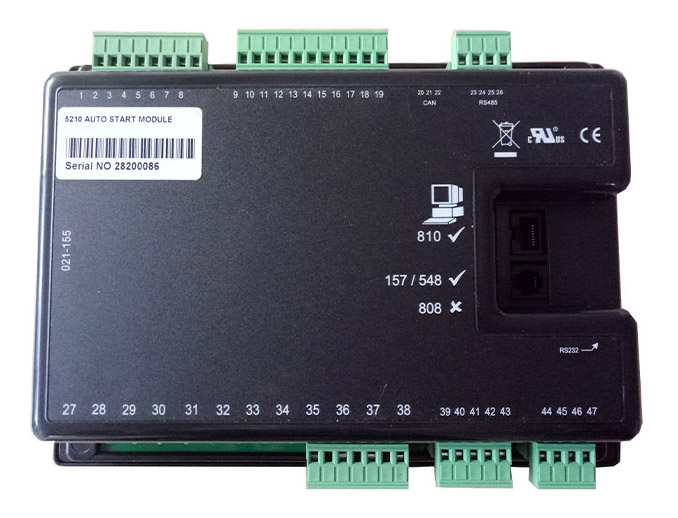

Generator Automatic Control Panel DSE5210

Generator Automatic Control Panel DSE5210

Model: DSE5210
Origin: China
In stock: yes
warranty: 1 year
Product description: The DSE5210 is an Automatic Start Control Module that offers an advanced range of engine monitoring and protection features. The module has been designed to monitor generator frequency, generator volt
INQUIRY

Hot Sales Generator Auto Start Control DSE5210 Genset Controller can completely replace with it. It has the function of auto mains (utility) failure Control Modules monitor incoming mains (utility) supplies and instruct gen-sets to start when mains (utility) power is not available. All modules include a range of intelligent control, monitoring and protection features for standard and electronic engine gen-set applications.

Power Supply	8 to 35 Vdc Continuous
Cranking Dropouts:	Able to survive 0 V for 50 mS, providing supply was at least 10 V Before dropout and supply recovers to 5V.
Max Current	Operating 425mA at 12 V & 215mA at 24 V; Standby 250 mA at 12 V & 125 mA at 24 V.
Start Relay Output:	16 Amp DC at supply voltage.
Fuel Relay Output:	16 Amp DC at supply voltage.
Auxiliary Relay Outputs:	5 Amp DC at supply voltage.
Charge Fail / Excitation Range	0 V to 35 V
Maximum operating current	320ma at 12V, 215ma at 24v
Maximum operating current	175ma at 12V, 95ma at 24v
Alternator Input Range:	15V(L-N) to 333V AC (L- N) absolute maximum
Alternator Input Frequency:	50 - 60 Hz at rated engine speed (Minimum: 15V AC Ph-N)
Magnetic Pick-up Voltage Input Range:	+/- 0.5 V to 70 V Peak
Magnetic Input Frequency:	10,000 Hz (max) at rated engine speed
MAINS (UTILITY) SENSING INPUT RANGE	(DSE5220 only) 15V (L-N) to 333V AC (L-N) absolute maximum
MAINS(UTILITY)SENSINGINPUTFREQUENCY	(DSE5220 only) 50-60 Hz
MAINS (UTILITY) & GENERATOR LOADING RELAY OUTPUT	(DSE5220 only) 8A AC 250V
Generator loading Relay Output:	8 Amp AC 250V.
Mains loading Relay Output:	8 Amp AC 250V
Panel Cutout:	220mm x 160mm ( 8.7”x 6.3”)
