Generator Controller

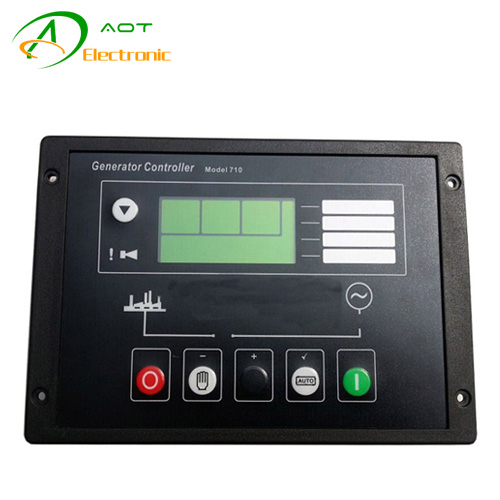

Generator Auto Start Control Panel DSE710 For Deep Sea Controller

Generator Auto Start Control Panel DSE710 For Deep Sea Controller

Model: DSE710
Origin: China
In stock: yes
warranty: 1 year
Product description: Intelligent Generator Controller DSE710 has same function with the Deep sea DSE710, can completely replace with it. It has the function of auto mains (utility) failure control modules monitor incoming
INQUIRY

Generator Auto Start Control Panel DSE710 For Deep sea controller

The DSE710 is an Automatic Start Control Module that offers an advanced range of engine monitoring and protection features. The module has been designed to monitor generator frequency, generator volts, generator current, engine oil pressure, engine coolant temperature, engine running hours and battery volts. The module also displays the engine speed. When the module detects a fault condition it automatically shuts down the engine and indicates the exact fault on the modules LCD display or relevant LED indicator. The module can be configured using the front panel or via the DSE810 interface and a PC. The module can also be controlled from a PC that is located up to 100 meters away.

Intelligent Generator Controller DSE710
Control Function	Protection Function	Data display
Auto-test Commercial power	Low-Lubrition Oil	Battery Voltage
Emergence Stop	Charging failure	Oil pressure
Manual Start/STOP	Over Voltage,Over load	Operation Time
Long-Distance Start/Stop	High water temperature	Frequency
Auto quit of Start motor	Over frequency	Voltage
Double power switch transfer control	Low Frequency	Ampere
	Stop Failure	Water Temperature
	Start Failure	Speed
