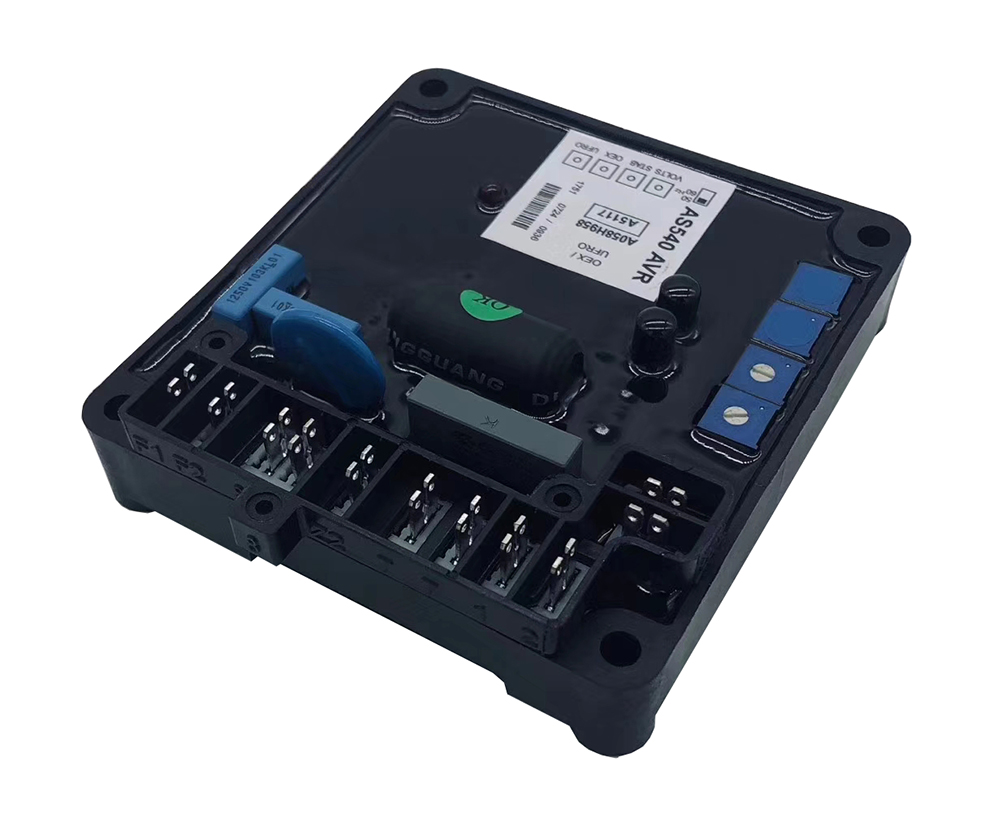

Generator AVR Automatic Voltage Regulator AS540 for Stamford

Generator AVR Automatic Voltage Regulator AS540 for Stamford

Model: AVR AS540
Origin: China
Applicaton: For Stamford Replacement
Warranty: 1 year
Product description: The Generator automatic voltage regulator AVR AS540 AVK provides closed loop control by sensing the alternator output voltage at the main stator windings and adjusting the exciter the stator field str
INQUIRY

Generator AVR Automatic Voltage Regulator AS540 for Stamford (A054P369)

AS540 Main Stator Powered AVR

The Generator AVR AS540 AVK provides closed loop control by sensing the alternator output voltage at the main stator windings and adjusting the exciter the stator field strength. Voltage included in the exciter rotor rectified by the rotating diodes, magnetises the rotating main field which includes voltage in the mani stator windings. A seff-excited AVR receives power from the alternator output terminals or a special auxiliary winding in the main stator winding.

Model	Generator AVR AS540
Sensing Input:
Voltage	95 VAC to 130 VAC 1 phase or 190 VAC to 265 VAC 1 phase
Frequency	50 Hz to 60 Hz nominal
Power Input:
Voltage	95 VAC to 265 VAC 1 phase only
Frequency	50 Hz to 60 Hz nominal
Power Output:
Voltage	Maximum 82 VDC at 200 VAC input
Current	Continuous 4A, Transient 7.5A for 10 seconds
