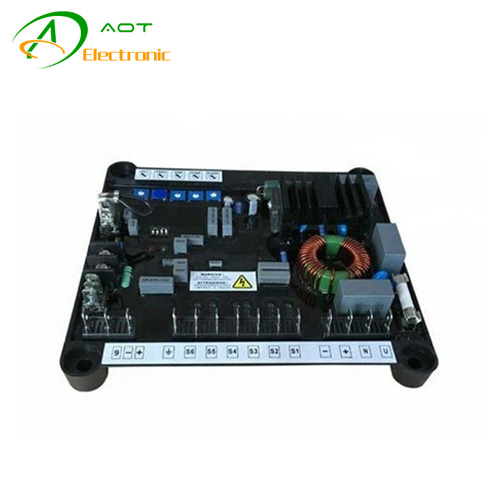

Generator AVR for Marelli AVR M40FA640A

  • Model: M40FA640A
  • Origin: China
  • In stock: yes
  • warranty: 1 year
  • Product description: Generator AVR for Marelli AVR M40FA640A
  • INQUIRY

APPLICATION

M40FA640A Automatic Voltage Regulator is developed by Marelli suitable for Three-phase Synchronous Generators. Which is provided with internal circuits in order to reduce the excitation, when running at low speed, in order to avoid damages to the excitation system of the generator.


Specification

Model

AVR M40FA640A

Supply Voltage

170-277V 50/60Hz

Power Supply

1000 VA (max)

Power Dissipated

30W (max)

Voltage Sensing

170-270/380-415/440-480V(three or single phase sensing)

Output Voltage(DC)

80V (max, continuous)

Output Current(DC)

8A (max, continuous)

Output Current(DC)

15A (max 1 minute forcing)

Regulation Accuracy

+/-0.5% steady state conditions, for rated voltage and PF

Voltage Drift

+/-0.5% of voltage change for 50degree TAMB change

Response Time

1 cycle (12ms-16.6ms)

Operating Temperature

-30°C- +70°C

exciter Field Resistance

3.5Ω(min)-20Ω(max)

Weight

About 0.9KG
