Model

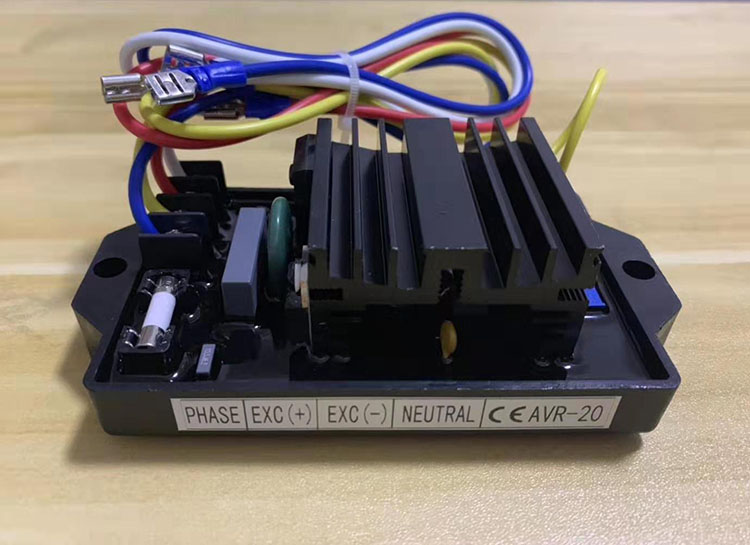

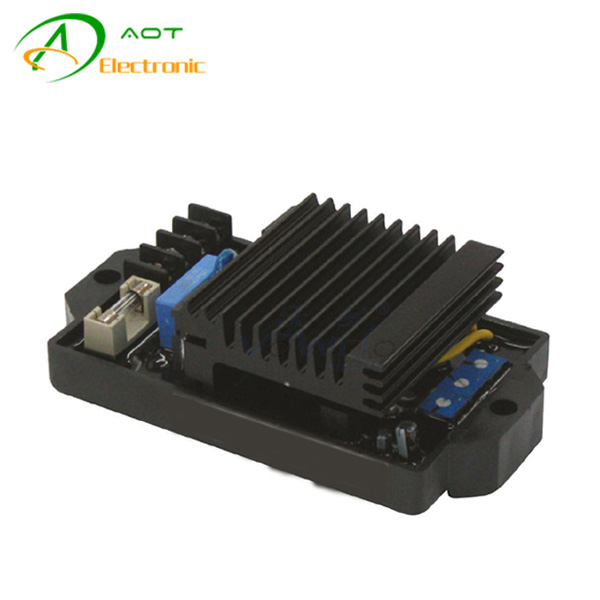

Generator Automatic Voltage Regulator AVR-20

Phases

single phase

Voltage Adjustment Range

210-250 Volts min

Frequency

50/60Hz

Frequency Protection Adj. Range

40-50Hz

Output Voltage

0-115 volts-DC at 230volts

Output Current

20A continuous

Residual Voltage For Build Up

5 volts minimum

Regulation

+/- 2% typical

Power Output Stage

Half Wave tyhristor

Internal Fusing

10A (fast acting fuse)

Operating temp

-10°C (14°F) to 60 °C (140°F)

Storage temp

-20°C (-4°F) to 80 °C (176°F)

Maximum humidity

95% non-condensing

Dimensions(L*W*H)

125mm*68mm*35mm

Fixing centers

115mm, 2*M6

Weight

280g
