DC Supply

8 Volts to 35 Volts DC Continuous

Cranking Dropouts

Able to survive 0 Volts for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 Volts. This is achieved without the need for internal batteries.

Max. Current

Operating 50mA

Standby

10mA

Alternator Input Range

75 Volts (ph-N) to 277 Volts (ph-N) AC (+20%)

Alternator Input Frequency

50 - 60 Hz at rated engine speed (Minimum: 75V AC Ph-N)(Crank Disconnect from 15V Ph-N @ 20Hz)

Overspeed

+14% (+24% overshoot)

Underspeed

–20%

Start Output

1.2 Amp DC at supply voltage

Fuel Output

1.2 Amp DC at supply voltage

Auxiliary Outputs

1.2 Amp DC at supply voltage

Dimensions

125mm x 165mm x 28 mm

Charge Fail

12 Volts = 8 Volts CF 24 Volts = 16 Volts CF

Operating Temperature Range

-30 °C to + 70°C

Applicable Standards

Compliant with BS EN 60950 Low Voltage Directive

Compliant with BS EN 50081-2: 1992 EMC Directive

Compliant with BS EN 61000-6-4: 2000 EMC Directive

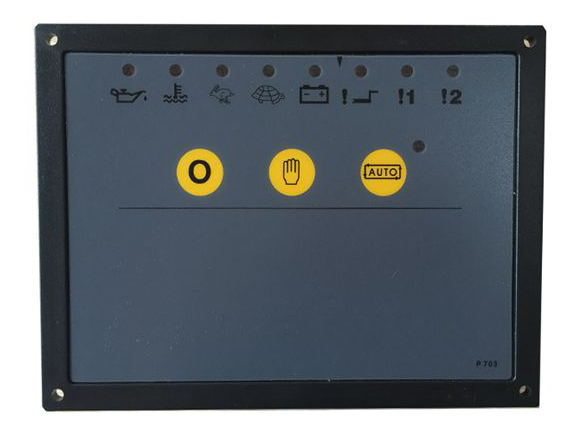

Auto start control module controller DSE703 for diesel generator set

Control Function

Protection Function Data display

Protection Function Data display

Emergency Stop

Low-Lub oil pressure

Speed

Manual Start/stop

Charge Failure

Voltage of battery

Distance Start/Stop

Emergency STOP

Lub Oil pressure

Preheat Control

High temperature of cooling water

Operation time

Stop/idle control

High Speed/Start and stop failure

Voltage/Current
