Generator Half Bridge Modules and Thyristor

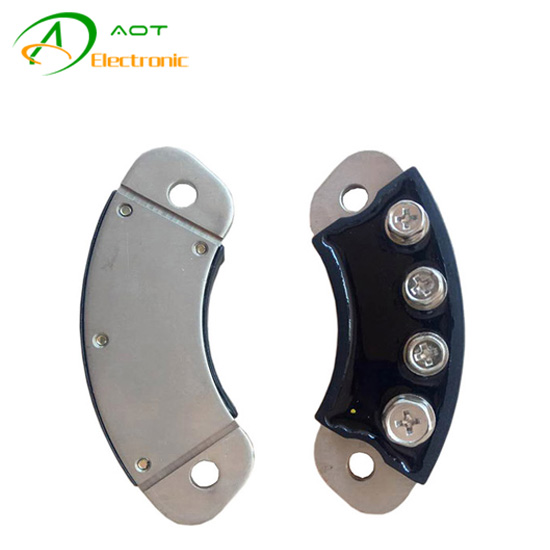

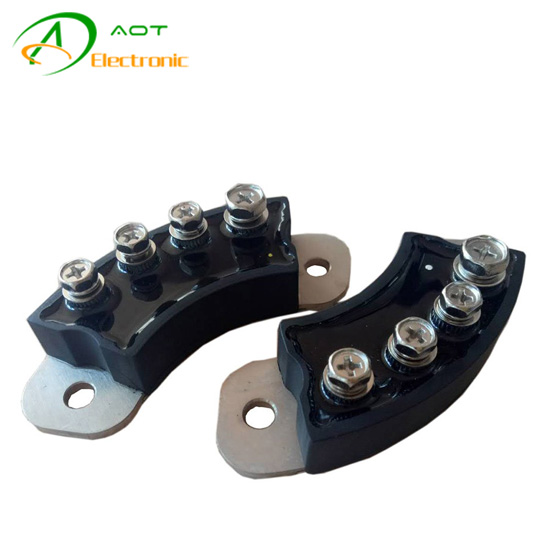

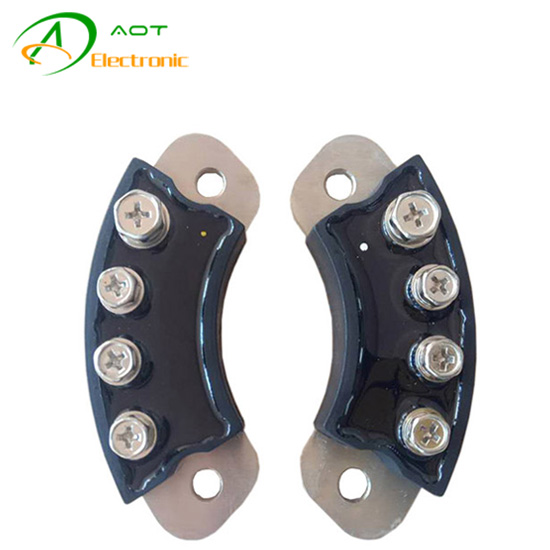

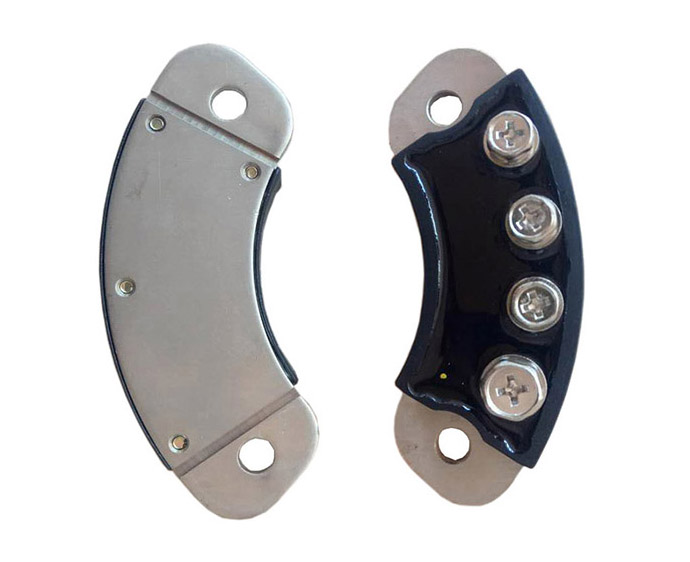

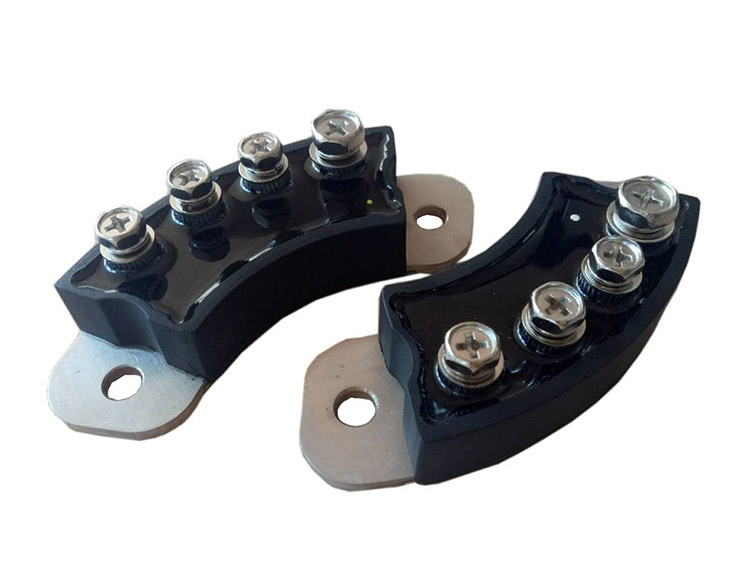

Generator Rotation 3 Phase Half Bridge Rectifier 40A Diode Modules MXG(Y)40-15

Generator Rotation 3 Phase Half Bridge Rectifier 40A Diode Modules MXG(Y)40-15

Model: MXG(Y) 40-15
Ampere: 40A
Origin: China
In stock: Yes
Product description: 100% Red Pure Copper Generator Rotating diode bridge MXG/Y for generator parts is help brush-less generator to adjust the Ampere to standard level. Can widely used for most of the generators from 16A
INQUIRY

Generator Rotation 3 Phase Half Bridge rectifier 40A Diode Modules MXG(Y)40-15

100% Red Pure Copper Generator Rotating diode bridge MXG/Y for generator parts is help brush-less generator to adjust the Ampere to standard level. Can widely used for most of the generators from 16A to 150A. It's become the one of the most spare part for the generator.

Comparing data between AOT and Other brand

Item	AOT	Other brand
Chip	100% Fully Ampere chip	Less than 80% Ampere chip
Copper	100% Red Pure Copper	Mixed cooper,Brass
Weight	Higher weight	Low weight
Life time	Long	Short
Performance	Stable, perfect	Change able, easy damage

The characteristic parameters

Symbol	Value												Unit
IF	16	20	25	35	40	50	70	100	110	150	200	250	A
VRPM	25	30	39	55	63	79	110	157	173	236	314	392	A
IFSMS	290	360	450	630	720	900	1260	1800	1980	2700	3600	4500	A
IFMS	0.1	0.2	0.3	0.4	0.45	0.5	1	1.8	2.5	5	7.5	10	103A2s
I2t			≤1.2					≤1.5			≤1.8		V
VFM			≤5 (Vr=Vrrm, Tj=150℃)					≤8			≤10		mA
IRRM			1000-1600										V
VISO			2500										V
Tj			-40 ~ +150										℃
Tc			85										℃
Tstg			-40 ~ +150										℃
a			1250										g
