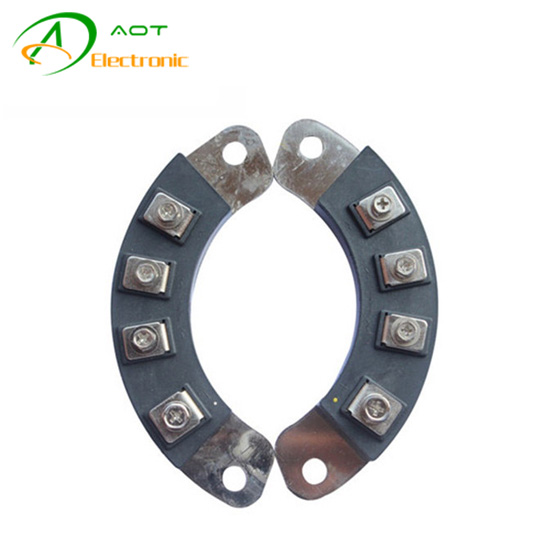

Generator Rotation Half Bridge Rectifier Diode Modules MXG(Y)70-15 for Brushless Genset

Generator Rotation Half Bridge Rectifier Diode Modules MXG(Y)70-15 for Brushless Genset

Model: MXG(Y) 70-15
Ampere: 70A
Origin: China
Warranty: 1 year
Product description: Generator Rotation 3 Phase Half Bridge Rectifier Diode Modules MXY70-15 for Brushless Genset, It is help brushless generator to adjust the Ampere to standard level. Can widely used for most of the gen
INQUIRY

Generator Rotation 3 Phase Half Bridge rectifier Diode Modules MXG/Y Series

136MM Insulated AVR Rectifier Generator Rectifier Diodes MXG(Y)70-15 for generator parts is help brushless generator to adjust the Ampere to standard level. Can widely used for most of the generators from 16A to 150A.

It's become the one of the most spare part for the generator.

The characteristic parameters

Symbol	Value												Unit
IF	16	20	25	35	40	50	70	100	110	150	200	250	A
VRPM	25	30	39	55	63	79	110	157	173	236	314	392	A
IFSMS	290	360	450	630	720	900	1260	1800	1980	2700	3600	4500	A
IFMS	0.1	0.2	0.3	0.4	0.45	0.5	1	1.8	2.5	5	7.5	10	103A2s
I2t			≤1.2					≤1.5			≤1.8		V
VFM			≤5 (Vr=Vrrm, Tj=150℃)					≤8			≤10		mA
IRRM			1000-1600										V
VISO			2500										V
Tj			-40 ~ +150										℃
Tc			85										℃
Tstg			-40 ~ +150										℃
a			1250										g

MXG40-15 Rotating bridge rectifier produced by us has the following advantage:

1. 100% full inner core

AOT never compromise the quality,focus on details

Only using the high standard full ampere core to ensure the high reliable performance.

2. Perfect Outside Hard inside

Vision Diode not only have the nice appearance, but also concern the inside parts and details which is determine the performance the reliable quality.

3. High accuracy

Factory used the advanced equipment to produce, assembly and inspect the pick-up. To ensure the high accuracy.
