Automatic Voltage Regulator (AVR)

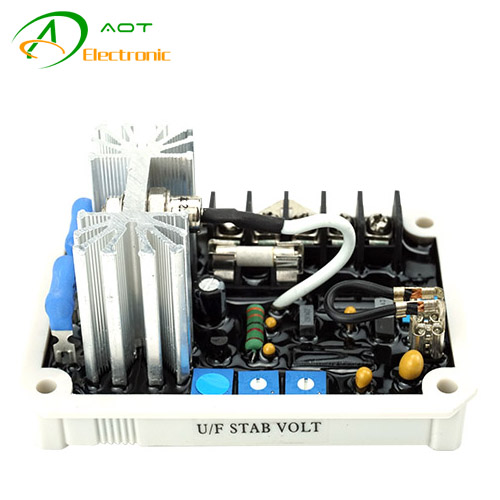

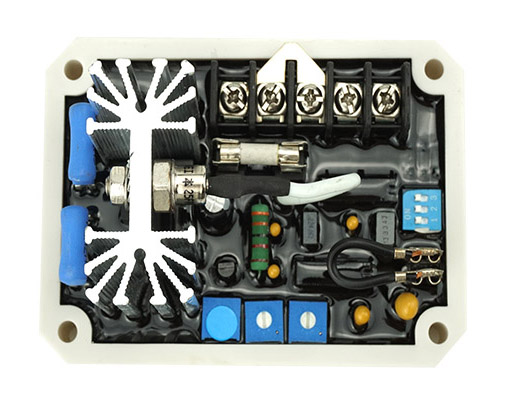

Generator Spare Parts Automatic Voltage Regulator AVR EA05A

Model: AVR EA05A
Origin: China
Warranty: 1 Year
In stock: Yes
Product description: Generator Spare Parts Automatic Voltage Regulator AVR EA05A Automatic Voltage Regulator Sensing Input 120V or 240V AVR EA05A regulator is a compatible replacement for Kutai Series EA05A .
INQUIRY

AVR EA05A regulator is a compatible replacement for Kutai Series EA05A .

Features

<±0.5% Regulation

220/380/440 VAC Programmable Input

Rugged Compact Design

With Under Frequency Protection

Soft Start Voltage Ramping

EMI Suppression

Built-in High Capacity 5 Amp Fuse

Product Name	Generator Universal AVR Automatic Voltage Regulator AVR EA05A
Sensing/Power input	Voltage	220/380/440Vac,1 phase ,2 wire
	Frequency	50/60 Hz jumper Optional
Output	Voltage	90Vad at 240 Vac
	Shunt Current	Continuous 5A,intermittent 7A in 10 seconds
Resistance	12Ωminimum , max 100Ω
Regulation	+/-0.5% RMS with 4% engine governing
Voltage build-up	residual voltage atAVR terminal >5VAC
External Voltage Adjustment	+/-7% with 1k ohm 1 watt trimmed
