Speed Governor

Diesel Engine Speed Control Governor EFC 3098693

Diesel Engine Speed Control Governor EFC 3098693

Model: 3098639
Origin: China
Warranty: 1 Year
In stock: Yes
Product description: Generator Speed Governor Part module 3098693 is a engine speed controller designed by all electronic device for s actuator, It can fast and precise response to transient load changes. It has a wide sp
INQUIRY

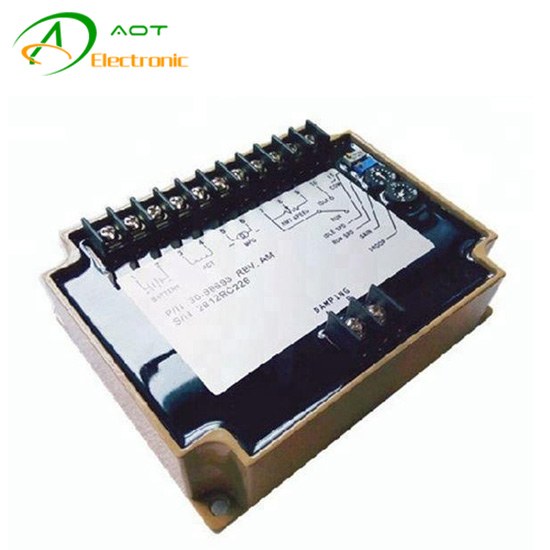

Diesel Engine System Speed Control Module Unit Governor EFC 3098693

Generator Speed governor Part module 3098693 is a engine speed controller designed by all electronic device for s Actuator, It can fast and precise response to transient load changes. It has a wide speed control range. For these controllers, separate circuits allow adjustments of proportional, integral and derivative values. These parameters all work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel.

Generator Speed Governor 3098693
RPM Stability	<±0.25%
Speed Range	1KHz ~ 6.5KHz
Thermal Stability	Max ±0.7%
IDLE Regulation	260 ±20Hz
DROOP Regulation	Minimum 15Hz ±6Hz/ 1 Amp
DROOP Regulation	Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation	±200Hz (with 1 KΩ connected)
AUX Input Sensitivity	148Hz / 1V., ±10Hz
Impedance	1MΩ
Working Temp Range	-40 ~ 85 °C
Working Humidity Range	Maximum 95%
Stocking Temp	-55 ~ 92 °C
Shocking	20-100HZ 500mm/Sec.
Voltage	12 or 24V
Grounding Pole	Negative pole
Power Supply	40mA
Actuator Continuous Current	Minimum 1A, Maximum 4.5A
Signal	2 ~ 120V RMS
