Speed Governor

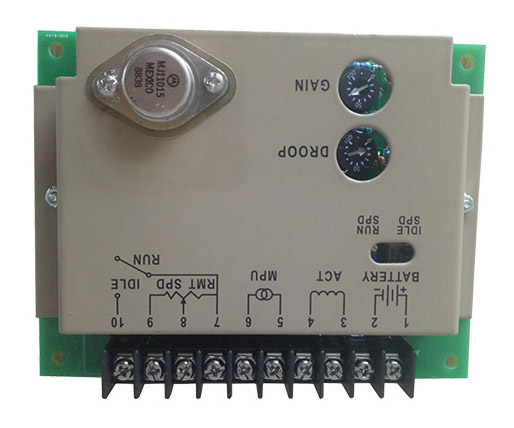

Generator Speed Controller Control Unit 4913988

Model: 4913988
Origin: China
Warranty: 1 Year
In stock: Yes
Product description: Diesel Generator Spare Parts Alternator Speed Controller Control Unit 4913988 Governor for Cummins Engine
INQUIRY

1.Introduction

A. Low smoke displacement, soft noise

Meet the demand of environment protection imp rive people' s feeling.

B. Easily to start in cold environment, plateau and Ww pressure areas, especially for N-G-250kw and K-G-300kw sets.

C. High ability to anti-disturbance stable operation due to the large power walkie-talkie·

D. Actuator can not be damaged in case of short circuit due to the output protector.

E. Diesel with water pump cam start with wad, the range of round per minute cam be±600, that is 1000-1200 rpm.

2.Technical data:

Supply:	12 or 24V DC Battery Systems
Actuator Current Range:	Min. 2.5 Amps, Max. 10 Amps continuous
Speed Sensor Signal:	0.5~120 V RMS
Operating Ambient Temperature Range:	-40°C ~ 85°C
Relative Humidity:	up to 95%
Speed Range:	1K-7.5K Hz continuous
Speed Trim Range:	± 200Hz
Gross Weight:	0.85KG
PACKAGE SIZE:	155mm155mm55mm
