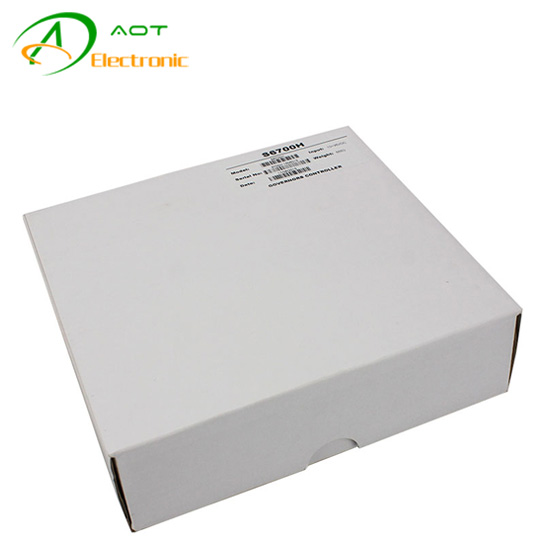

Generator Spare Part Electronic Speed Controller Board S6700H

Generator Spare Part Electronic Speed Controller Board S6700H

Model: S6700H
Origin: China
Warranty: 1 Year
In stock: Yes
Product description: The S6700H Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The S6700E speed co
INQUIRY

Generator Spare Part Electronic Speed Controller Board S6700H

The S6700H Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient over voltage or Actuator fault happens, or Speed input breaks.

Power reverse connection protection

Actuator default protection

Speed signal Lose protection

Over-speed & External high Level input Alarm

Specification

S6700H
Environmental	Ambient operating temperature range	- 40 ~ 85 °C
Environmental	Relative humidity	95%
Input Power	Supply	24VDC
	Actuator current range	2.5-10A(continuous)
	Speed sensor signal	1-20v
Characteristics	Speed fine adjustment range	± 100% r / min
	Frequency fluctuation	± 0.25%
	Steady speed droop	0~3% (variable)
	Temperature drift	± 1% (maximum)
