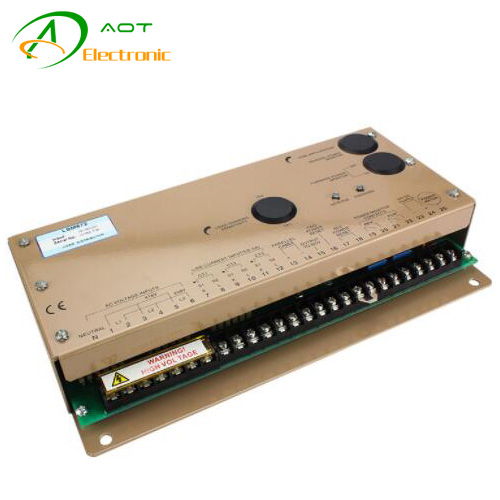

LSM672 Diesel Engine Controller Speed Control Unit

LSM672 Diesel Engine Controller Speed Control Unit

Model Number: LSM672
Brand Name: AOT
Warranty: 1 year
In stock: yes
Product description: The function of the Load Sharing Module is to proportionally share load between two or more generator sets while the system frequency is held constant.As an accessory to the electronic Governing Syste
INQUIRY

1)The function of the Load Sharing Module is to proportionally share load between two or more generator sets while the system frequency is held constant.As an accessory to the electronic Governing System,the PER 672 measures the true power current ,and throught a parallel cable interconnection,continuously controls the governor system.

2)Performance:
Load Sharing Adjustable to within +/-2% between sets
Performance.Isochronous and droop paralleling and power control
Reverse Power Monitor.Adjustable from 0.5-20% with a 2 second inverse time constant
Forward Power Monitor ON trip point adjustable from 20-100%
OFF trip point adjustable from 0-80%
Normally open contacts with a 2 second inverse time constant

3)Power Output:

Signal.0 to 7.5 Volts DC representing 0-100% load
All performance specifications are based on 5 amps from the current transformer (CT) Secondaries at full load unity P.F.

4)Power input :
AC input signals.. 208 or 416 volt nominal line to line and 5 amp CTs with a minimum 6.25 VA rating. Internal 0.25 ohm burden resistors
Line to line voltagesper table below
HZ      LOW RANGE       HIGH RANGE
50      140-250 VAC         260-420 VAC
60      170-260 VAC         340-500 VAC
400     170-260 VAC         340-500 VAC

DC Supply..18-36 VDC(Transient and reverse voltage protected)
DC Power Consumption.70 ma continuous

5)Weight:2.41kg

6)Relative products:

PER672

PER6714

Power Input	AC Input Signals	208 or 416 Volt nominal line to and 5Amp Cts with a minimun 6.25VA Rating internal 0.25 ohm burden resistors
	Line to line Voltages	Per table below
	DC Supply	18-36 VDC (Transient and reverse voltage protected) for 12 VDC Applicationis use LSM 672-12
	Polarity	Negative ground (case isolated)
	DC Power Consumption	70 ma continuous
	Power output Signal	0-7 Volts based on 5amps of C.T .output
Performance	Load sharing	Adjustable to within ±2% between sets
	Performance	Isochronous and droop paralleling and power contol
	Reverse Power Monitor	Adjustable from 0.5-20% with a 2 second inverse time constant
	Forward power Monitor	"ON" trip point adjustable from 20-100%/ "OFF" trip point adjutable From 20-100%. Normally open contacts with a 2 second inverse time Constant
	Power output Signal	0 to 7.5 Volts DC representing 0-100% load. All performance Specifications are based on 5A from the current transformer(CT) Secondaries at full load unity P.F.
	Droop Range	1-5% regulation
Environmental	Temperature Range	-40 to +175°F(-40°+85 °C)
	Relative Humidity	100%- Circuit board heavily conformal coated
	All Surface Finishes	Fungus Proof and Corrosion Resitant
Reliability	Testing	100% Functional Tested
	Vibration	1g @ 20-100HZ
	Shock	10gs
physical	Dimensions	See Diagram 1
	Weight	5.2 Lbs (2.36Kgs)
	Mounting	Any position, Vertical Preferred
