Automatic Voltage Regulator (AVR)

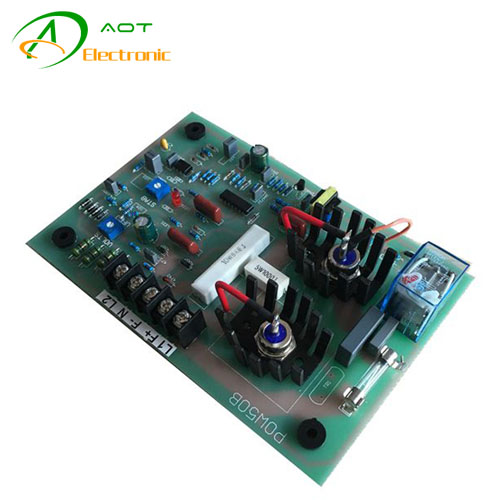

Big Thyristor Generator AVR Automatic Voltage Regulator GAVR-50A

Model: AVR GAVR-50A
Origin: China
Warranty: 1 Year
In stock: Yes
Product description: Big Thyristor Generator AVR Automatic Voltage Regulator Circuit Diagram Board GAVR-50A is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation syste
INQUIRY

Big-Thyristor-Generator-AVR-Automatic-Voltage-Regulator GAVR-50A

Big Thyristor Generator AVR Automatic Voltage Regulator Circuit Diagram Board GAVR-50A is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%.
