Description
LEROY SOMER R726 has 3 main functions, (1) Power factor regulation for paralleling with the mains, (2) Voltage Equalization which is done right before paralleling and (3) paralleling capabilities with another alternators equipped with the same R726. The R726 is compatible with the R129, R130, R438 and R450 from Leroy Somer. Popular generator set manufactures utilize the R726 such as SDMO, Kohler, CAT, FG WILSON and Olympian diesel generators. The regulator is available for general purchase and technical assistance is offered to those who need it.

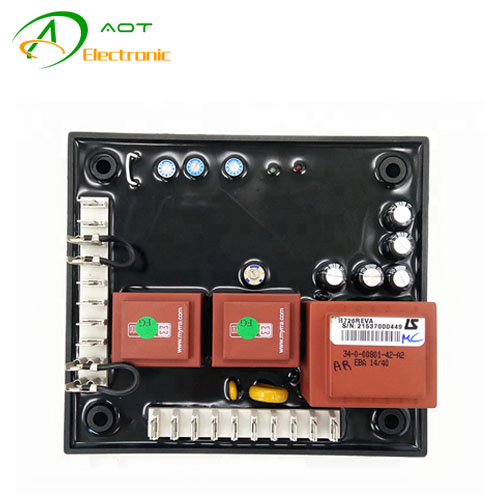

DESCRIPTION: Leroy Somer R726 Control Module, brand new, Original
SAME EXACT AVR AS:
Leroy Somer Voltage Regulator AEM100RE001 AVR
SDMO Voltage Regulator 330410293 AVR
MANUFACTURER: Leroy Somer, a division of Emerson Electric
ORIGIN: Manufactured in FRANCE
|
Model |
Generator AVR R726 |
|
Description |
|
|
Place of origin |
FRANCE |
|
Feeding |
Shunt: 100-150 V., 50/60 Hz. (terminals X1- X2). |
|
Voltage |
0-110 (95~140 V) 0-220 (170~260 V) 0-380 (340~520 V) |
|
Frequency |
50/60 Hz, selectable |
|
Protection fuses |
10 A-250 V, Slow feature |
|
Current transformer (S1-S2) |
.../1 A, 2,5 VA Cl. 1. (optional) |
|
External potentiometer fine adjustment voltage |
470 Ohm. 0,5 W |
|
Departure |
max. 120 V, 10 A, 10s |
|
Dissipation of the device |
max. 12 W |
|
Adjustment margin by external potentiometer |
7% |
|
Protection against low frequency |
|
|
Elbow of beginning of fall of tension |
Para 50 Hz: 48 Hz Para 60 Hz: 57,5 Hz |
|
Operating temperature |
-40 – 60 °C |
