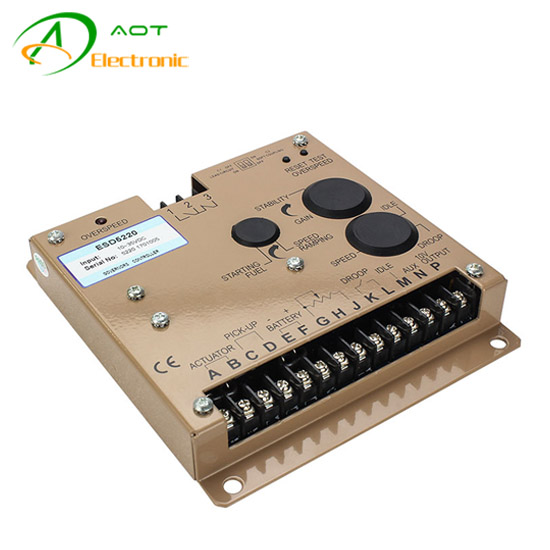

Mechanical Diesel Engine Speed Control Unit ESD5220 Governor for Generator

Mechanical Diesel Engine Speed Control Unit ESD5220 Governor for Generator

Model: ESD5520
Origin: China
Warranty: 1 Year
In stock: Yes
Product description: Generator Speed Control Unit ESD5220 is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist or condensation may come in c
INQUIRY

Generator Speed Control Unit ESD5220 is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.

Generator speed control engine governor module ESD5220
Isochronous Operation/Steady State Stability	± 0.25% or better
Speed Range/Governor	1K-7.5K Hz continuous
Speed Drift with Temperature	± 1% Maximum
Idle Adjust CW	Min. 1200Hz. below set speed
Idle Adjust CCW	Min. 4100Hz. below set speed
Droop Range	1-5% regulation
Droop Adj. Max. (K-L connected)	875Hz., ± 75Hz. per 1.0 A change
Droop Adj. Min. (K-L connected)	15Hz., ± 6Hz. per 1.0 A change
Speed Trim Range	± 200Hz
Remote Variable Speed Range	500 -7.5Hz. or any part thereof
Terminal Sensitivity	J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance
	L: 735Hz., ± 60Hz/Volt @ 65 K Impedance
	N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance
	P: 10V DC Supply @ 20ma Max
Speed Switch Adjustment Range	1000-10000Hz.
ENVIRONMENTAL
Ambient Operating Temperature Range	-40°c to +85°c
Relative Humidity	up to 95%
Storage Temperature	-55°c ~ 90°c
Shock	20-100HZ 500mm/Sec.
INPUT POWER
Supply	12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
Polarity	Negative Ground(Case Isolated)
Power Consumption	50mA continuous plus Actuator current
Maximum Actuator Current at 25	10Amps continuous
Speed Sensor Signal	0.5-120 Volts RMS
